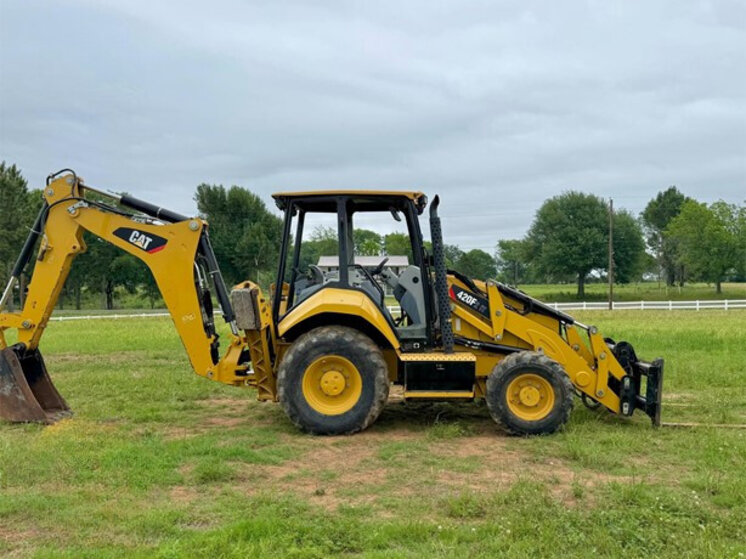

2019 CATERPILLAR 420F2 IT

Well-maintained 2019 Caterpillar 420F2 IT backhoe loader with only 1,341 hours, designed for high performance, versatility, and productivity in construction, utility, and earthmoving applications.

Powered by a Cat C4.4 ACERT diesel engine, this machine delivers up to 102 HP gross power and strong torque performance for demanding job site conditions. It features a 4WD drivetrain, hydrostatic power steering, and a power shuttle transmission with multiple forward and reverse speeds for smooth and efficient operation.

The machine is equipped with a closed-center hydraulic system producing up to 3,600 psi system pressure, ensuring strong digging and lifting performance on both loader and backhoe ends. The IT (Integrated Toolcarrier) front linkage with quick coupler adds versatility for a wide range of attachments.
Performance Highlights:
Max backhoe digging depth: up to 17 ft 11 in (extendible stick)
Bucket breakout force: 14,228 lbf
Stick digging force: up to 9,757 lbs
Max travel speed: up to 25 mph
Strong loader and backhoe reach for versatile job site use

This unit is clean, low-hour, and fully capable of handling heavy-duty excavation, loading, trenching, and material handling tasks. Ideal for contractors seeking a reliable and productive backhoe loader.

Engine Model: Cat C4.4 ACERT
Gross Power:
SAE J1995: 102 HP
ISO 9249: 100 HP
Net Power @ 2200 RPM:
SAE J1349 :93 HP
ISO 9249: 94 HP
EEC 80/1269: 94 HP
Net Peak Power @ 1800 RPM:
SAE J1349: 105 HP
ISO 9249: 106 HP
EEC 80/1269: 94 HP
Bore: 4.13?
Stroke: 5?
Displacement: 268 cu. in.
Net Torque Rise @ 1400 RPM: 46%
Net Peak Torque @ 1400 RPM: 322 lb. ft

Transmission:
Power Shuttle Transmission ? Standard
Forward 1st: 3.4 mph
Forward 2nd: 5.6 mph
Forward 3rd:13 mph
Forward 4th: 25 mph
Reverse 1st: 3.4
Reverse 2nd: 5.6 mph
Reverse 3rd: 13 mph
Reverse 4th: 25 MPH

Weights:
Operating Weight: 17,033 lbs.
Operating Weight ? Maximum: 24,251 lbs.
Cab, ROPS/FOPS: 359 lbs.
Auto-Shift Transmission: 525 lbs.
Ride Control: 31 lbs.
Air Conditioning: 93 lbs.
Four Wheel Drive: 364 lbs.
Loader, IT with Quick Coupler: 699 lbs.
Extendible Stick: 672 lbs.

Steering:
Type Front Wheel
Power Steering Hydrostatic
Bore: 2.6 in
Stroke: 4.7 in
Rod Diameter: 1.4 in
Axle Oscillation 11?

Hydraulic System:
Type Closed Center
Pump Type Variable Flow, Axial Piston
Pump Capacity @ 2,200 rpm: 43 gal/min
System Pressure ? Backhoe: 3,600 psi
System Pressure ? Loader: 3,600 psi

Loader:
Overall Length: 23?11?
Overall Transport Length Extendible: 23?11?
Overall Transport Height: 11?9?
Overall Width: 7?7?
Height to Top of Canopy: 9?3?
Wheelbase 4WD: 7?3?
Height to Top pf Exhaust Stack: 9?
Height to Top of Loader Hinge Pin (transport): 1?4?
Ground Clearance (minimum): 1?
Rear Axle Centerline to Front of Grill: 8?10?

Backhoe:
Digging Depth SAE (max)
E-Stick Retracted: 14?5?
E-Stick Extended: 17?11?
Digging Depth (2ft) Flat Bottom:
E-Stick Retracted: 14?4?
E-Stick Extended: 17?9?
Reach from Rear Axle Centerline @ Ground Line:
E-Stick Retracted: 22?2?
E-Stick Extended: 25?6?
Reach from Swing Pivot Ground Line:
E-Stick Retracted: 18?7?
E-Stick Extended: 21?10?
Max. Operating Height:
E-Stick Retracted: 18?3?
E-Stick Extended: 20?8?
Loading Height:
E-Stick Retracted: 11?10?
E-Stick Extended: 20?8?
Loading Reach:
E-Stick Retracted: 6?4?
E-Stick Extended: 9?4?
Swing Arc: 180 degrees
Bucket Rotation: 205 degrees
Stabilizer Spread, Operating Position (center): 10?10?
Stabilizer Spread, Operating Position (outside): 12?4?
Stabilizer Spread, Transport Position: 7?7?
Bucket Dig Force: 14228 lbf
Stick Dig Force;
E-Stick Retracted: 9757 lbs.
E-Stick Extended: 7122 lbs.
